Wedge Absorber

Home Wedge Absorber

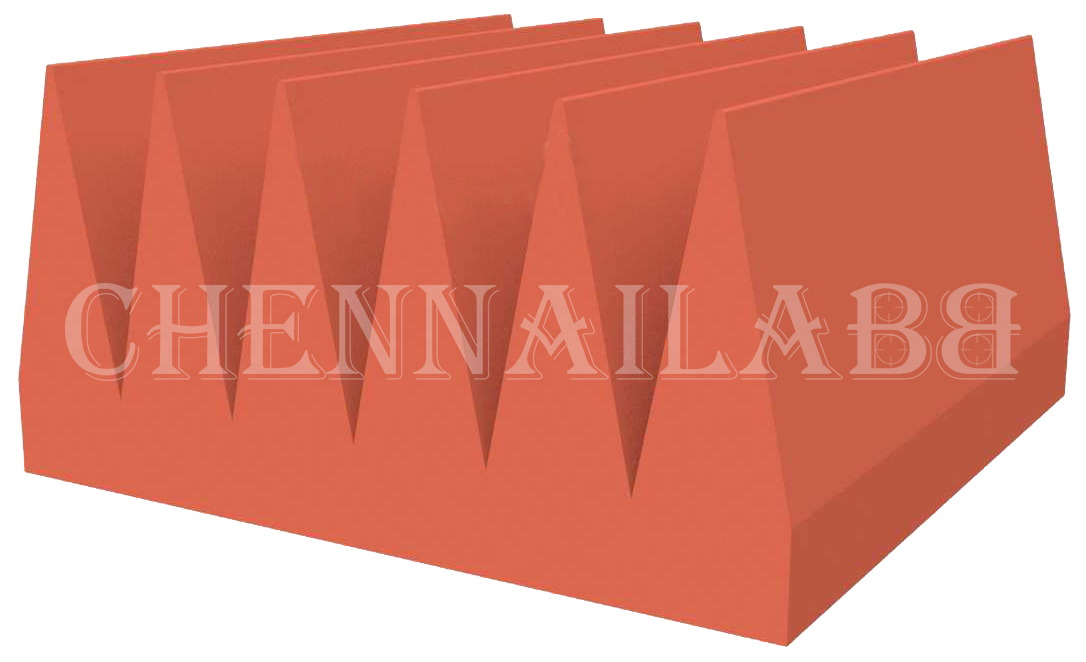

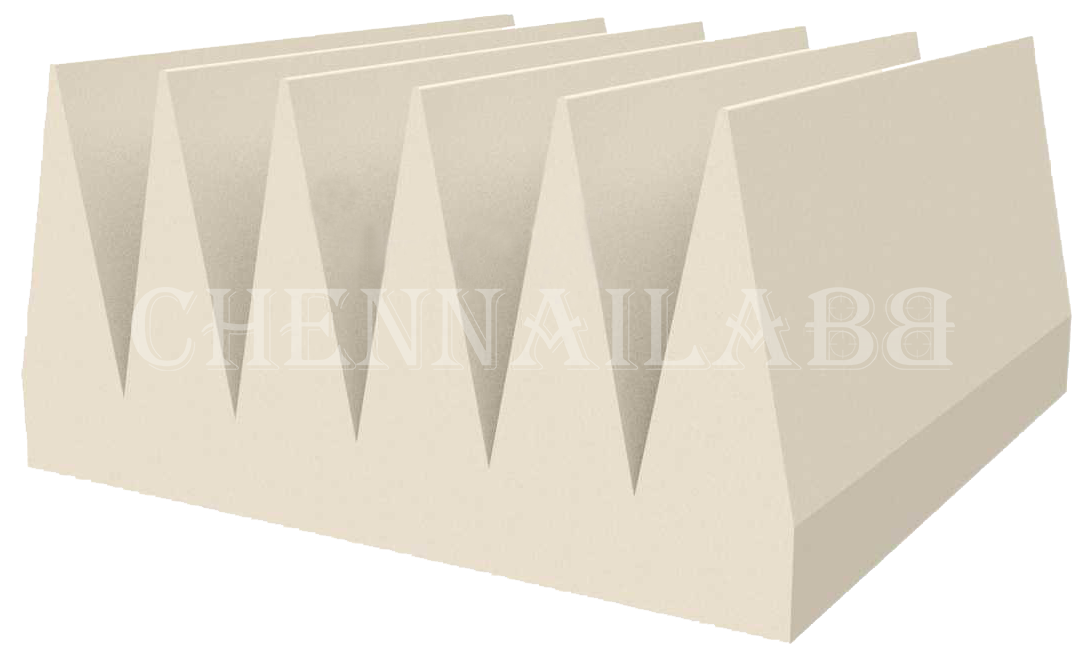

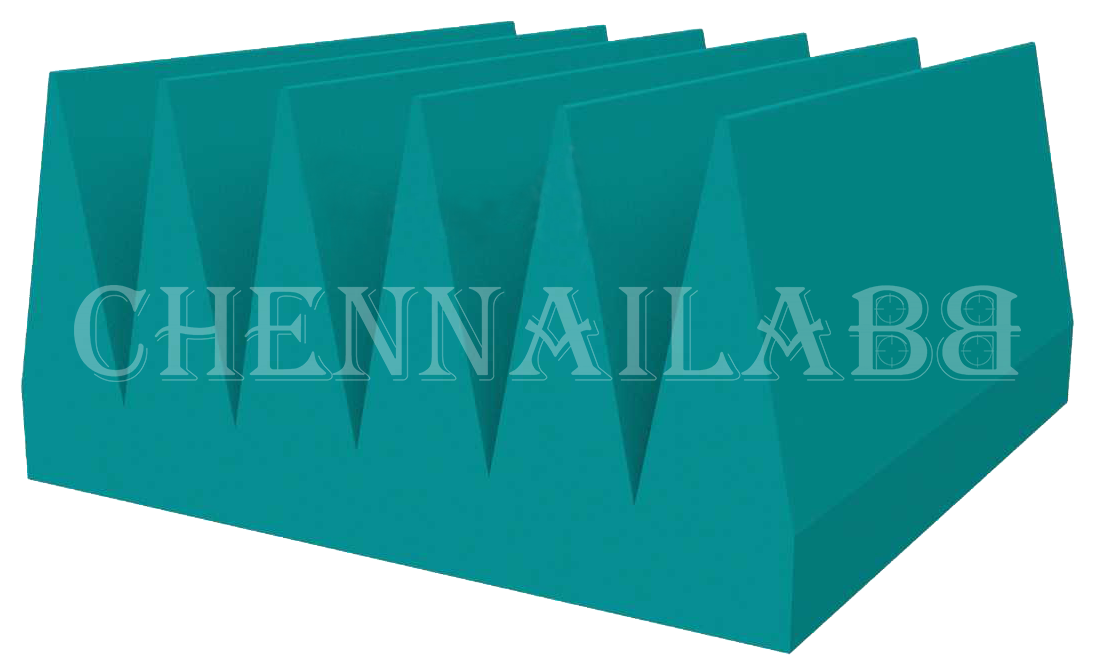

Broadband High Performance RF and Microwave Wedge Absorber

Chennailabb Polyurethane RF and Microwave Wedge Absorbers are mainly used in Antenna test chambers, Compact range and GTEM cells. Chennailabb-PU-WG-MI series microwave wedge absorbers provide excellent performance in normal incidence and off angle incidence in test chamber.

RF and Microwave Wedge Absorber features
  • Frequency range 500MHz to 100GHz
  • Typical reflectivity as high as -50dB
  • Power handling capacity 1.5kW/m2,540 V/m CW Radiated field strength
  • Fire Retardant per NRL-8093 1,2,3, UL 94 and DIN 4102-B2
  • Continuous working temperature up-to 90°C
  • RoHS Compliant
  • Zero Carbon dust

Part number reference:

Chennailabb-PU-WG-MI-200, Chennailabb-PU-WG-MI-300, Chennailabb-PU-WG-MI-500, Chennailabb-PU-WG-MI-700

TYPICAL REFLECTIVITY AT NORMAL INCIDENCE OVER FREQUENCY RANGE IN dB

Model Number 500 MHz 1GHz 3GHz 6 GHz 10GHz 18GHz 40 GHz 100 GHz
Chennailabb-PU-WG-MI-200 25 32 35 42 48 50 45
Chennailabb-PU-WG-MI-300 30 38 45 48 50 50 45
Chennailabb-PU-WG-MI-500 20 35 43 50 50 50 50 45
Chennailabb-PU-WG-MI-700 25 40 50 50 50 50 50 45

Chennailabb-PU-WG-MI-500

Chennailabb-PU-WG-MI-700
