EMI Power line filters

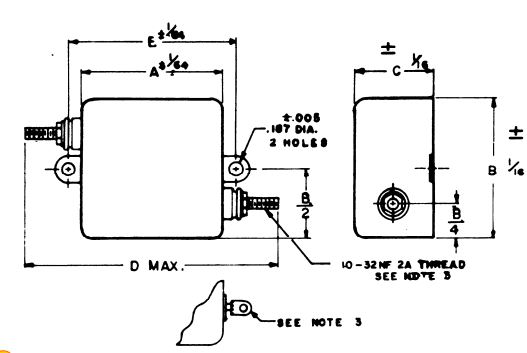

Single Circuit QPL to MIL-F-15733/4 Style FL53

All units are rated 125VAC, 400VDC, 0- 400Hz
Operating Temperature Range: – 62°C – +85°C
Temperature Rise: 25°C
Maximum Voltage Drop, 0.5V
Units rated less that 10A supplied with solder lug terminals,

DESIGNATION MIL·F·15733/4	Chennailabb PART NO.	RATED CURRENT (AMPS)	INSERTION LOSS SYMBOL	DIMENSIONS
				A	B	C	D	E
FL53DD1EA1	Chennailabb-FC-279	1	D	1.750	1.250	.875	3.406	2.125
FL53DD1EA1	Chennailabb-FC-279-1	3	D	2.000	2.000	.875	3.594	2.375
FL53DD1EA1	Chennailabb-FC-279-2	5	D	2.000	2.000	1.125	3.594	2.375
FL53DD1EA1	Chennailabb-FC-279-3	10	D	2.000	2.000	1.500	3.594	2.375
FL53DD1EA1	Chennailabb-FC-279-4	15	B	2.500	2.000	1.500	4.094	2.938
FL53DD1EA1	Chennailabb-FC-279-5	15	D	2.500	2.000	1.750	4.094	2.938
FL53DD1EA1	Chennailabb-FC-279-6	30	B	2.500	2.000	2.125	4.094	2.938
FL53DD1EA1	Chennailabb-FC-279-7	30	D	3.250	2.250	2.125	4.969	3.875
FL53DD1EA1	Chennailabb-FC-279-8	55	B	3.188	2.250	2.125	4.906	3.812
FL53DD1EA1	Chennailabb-FC-279-9	55	D	3.312	2.250	2.125	5.031	3.938

Frequency (MHz)		0.15	0.3	0.6	1	10	20	40	100	500	1000
Insertion Loss for symbol (dB)	B	40	50	60	60	60	60	60	60	60	60
	D	50	60	60	60	60	60	60	60	60	60

Full load insertion loss measurement shall be made from 0.15MHz to 20MHz

Above 20MHz insertion loss measurement shall be made under no-load per MIL-STD-220A

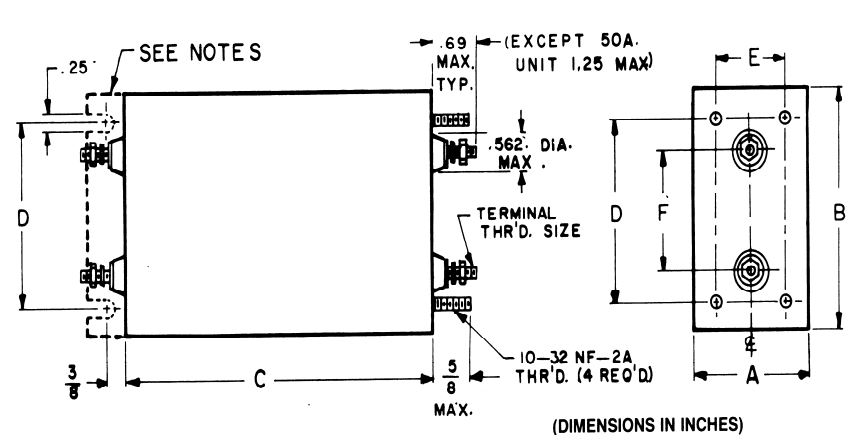

Dual Circuit QPL to MIL-F-15733/75

Voltage Rating: 115VAC, 400VDC, 0- 400Hz
Maximum Voltage Drop: 1% of rated volt- age
Dielectric Test: 2.5X rated voltage
Operating Temperature: -55°C to +85°C
Braket supplied with units over 6 inches long

MIL-F-15733I7S DASH NO	Chennailabb PART NO	CURRENT RATING (AMPS)	± .03	± .03	± .03	± .03	± .03	± .03	TERMINAL THREAD SIZE	INSERTION LOSS GRAPH
			A	B	C	D	E	F
·0001	Chennailabb-FC·1220·1	2 x 3	113	2.25	3.58	1.750	.625	75	8·32UNC·2A	B
· 0002	Chennailabb-FC-1220·2	2 x 3	1.50	3.00	494	2.500	1000	1.50	8·32UNC·2A	A
·0003	Chennailabb-FC·1220·3	2 x 5	1.25	2.50	4.71	2.000	750	1.25	8·32UNC·2A	B
·0004	Chennailabb-FC·1220·4	2 x 5	150	3.00	5.57	2.500	1.000	1.50	8·32UNC·2A	A
·0005	Chennailabb-FC·1220·5	2 x 10	1.50	300	537	2.500	1.000	1.50	8·32UNC·2A	B
·0006	Chennailabb-FC·1220·6	2 x 10	2.25	4.50	6.44	4.000	1.125	2.25	8·32UNC·2A	A
·0007	Chennailabb-FC·1220·1	2 x 20	175	3.50	6.19	3000	1250	175	8·32UNC·2A	B
·0008	Chennailabb-FC·1220·8	2 x 30	225	4.50	608	4.000	17,,0	2.25	10·32UNC·2A	B
·0009	Chennailabb-FC·1220·9	2 x 50	2.25	450	. 6.94	4.000	1750	2.25	1/4·20UNC·2A	B

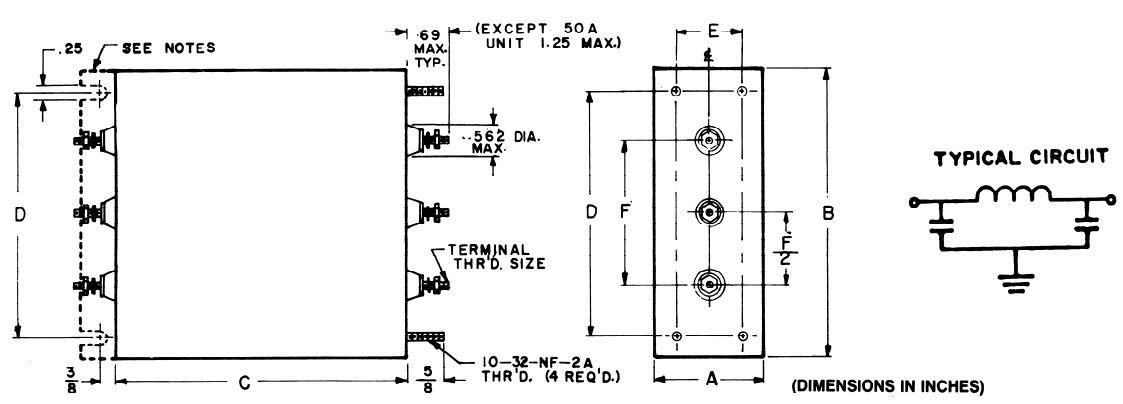

Triple Circuit QPL to MIL-F-15733/75

Voltage Rating: 115VAC, 400VDC, 0- 400Hz
Maximum Voltage Drop: 1% of rated volt- age
Dielectric Test: 2.5X rated voltage
Operating Temperature: -55°C to +85°C
Braket supplied with units over 6 inches long

MIL-F-15733175 DASH NO.	Chennailabb PART NO	CURRENT RATING (AMPS)	± .03	± .03	± .03	± .03	± .03	± .03	TERMINAL THREAD SIZE	INSERTION LOSS GRAPH
			A	B	C	D	E	F
·0010	Chennailabb-FC·1220·10	3 x 3	1.13	3.38	3.58	2.875	.625	2.00	8·32UNC·2A	B
· 0011	Chennailabb-FC-1220-11	3 x 3	1.50	4.50	4.94	4.000	1000	300	8·32UNC·2A	A
-0012	Chennailabb-FC·1220·12	3 x 5	1.25	3.75	4.71	3.250	.750	2.50	8·32UNC·2A	B
-0013	Chennailabb-FC·1220·13	3 x 5	1.50	4.50	5.57	4.000	1.000	300	8·32UNC·2A	A
-0014	Chennailabb-FC·1220·14	3 x 10	1.50	4.50	5.37	4.000	1.000	3.00	8·32UNC·2A	B
-0015	Chennailabb-FC·1220·15	3 x 10	2.25	6.57	6.44	6.250	1.750	4.50	8·32UNC·2A	A
-0016	Chennailabb-FC·1220·16	3 x 20	175	5.25	6.19	4.750	1250	3.50	8·32UNC·2A	B
-0017	Chennailabb-FC·1220·17	3 x 30	225	6.75	6.08	6.250	1.750	4.50	10·32UNC·2A	B
-0018	Chennailabb-FC·1220·18	3 x 50	2.25	6.75	6.94	6.250	1750	4.50	Y4-2{JUNC-2A	B
