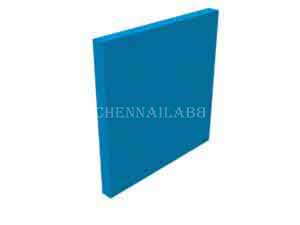

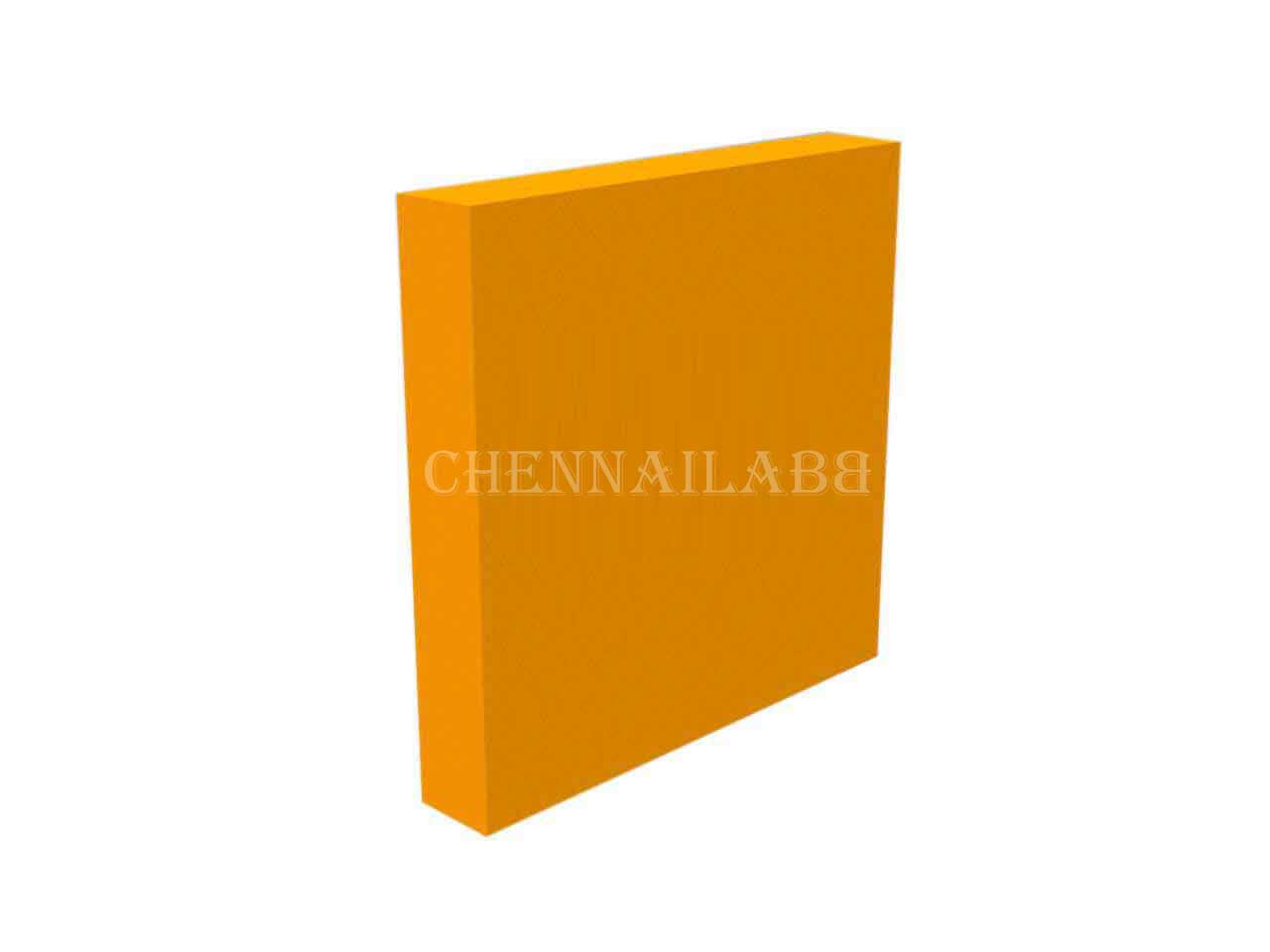

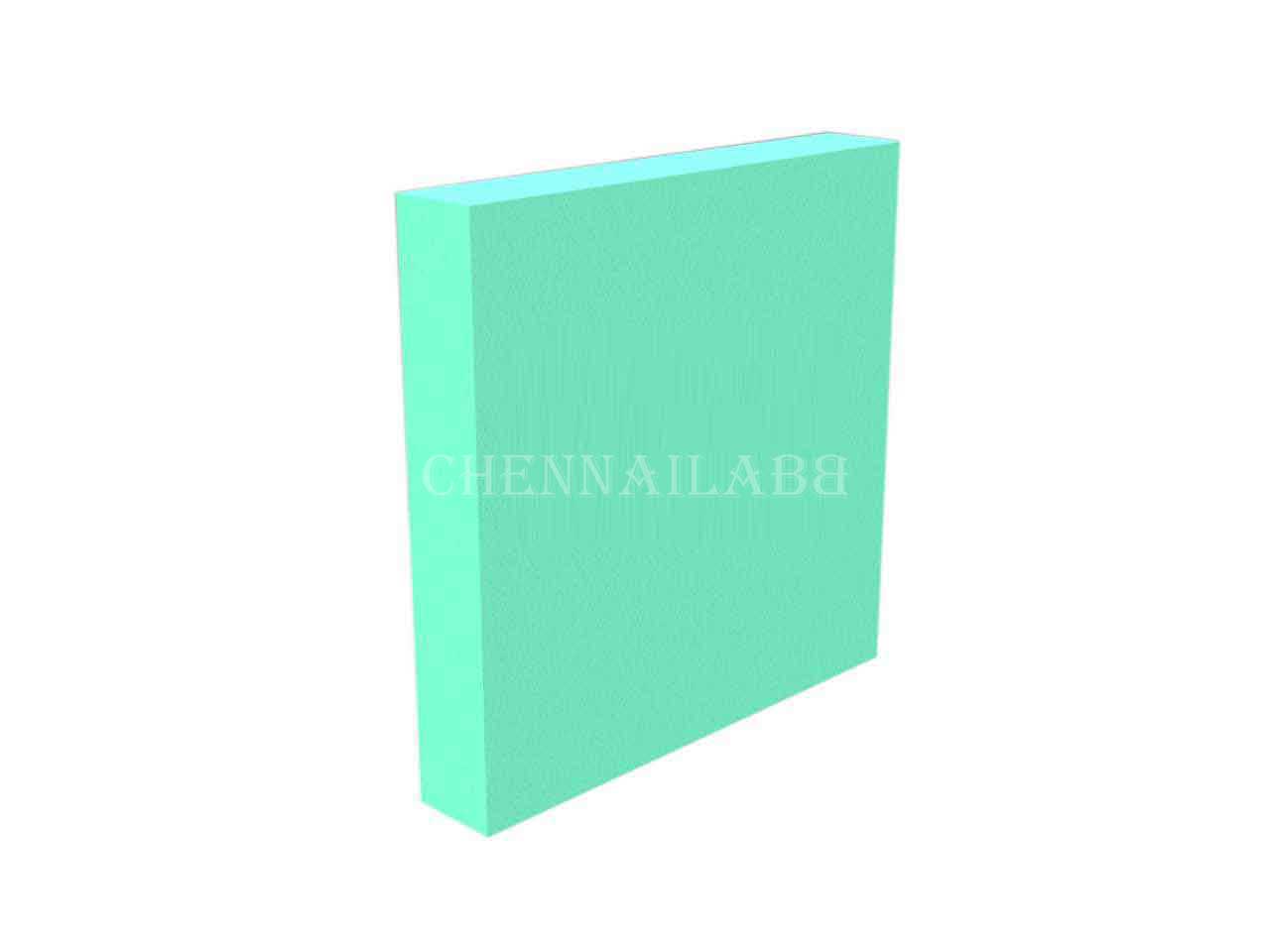

RF Flat Sheet Foam Absorber-PU
Chennailabb Polyurethane RF Flat Sheet Foam absorber is light in weight and has good performance, which can be used as corner block, to fill areas near antenna. PU-FLT series can also be used to reduce Side lobes, improves front to back ratio, absorbs clutter, eliminates interference and provides camouflage appearance and concealment of military facility.
RF Flat Foam Absorber features:
Part number reference:
Chennailabb-PU-FLT-5, Chennailabb-PU-FLT-10, Chennailabb-PU-FLT-20, Chennailabb-PU-FLT-50
TYPICAL REFLECTIVITY AT NORMAL INCIDENCE OVER FREQUENCY RANGE IN dB
| Model Number | Thickness | 1 GHz | 3 GHz | 6 GHz | 10 GHz | 18 GHz | 40 GHz |
| Chennailabb-PU-FLT-5 | 5 mm | 5 | 10 | 15 | |||
| Chennailabb-PU-FLT-10 | 10 mm | 10 | 15 | 15 | 18 | ||
| Chennailabb-PU-FLT-20 | 20 mm | 10 | 15 | 17 | 17 | 20 | |
| Chennailabb-PU-FLT-50 | 50 mm | 10 | 18 | 18 | 19 | 19 | 22 |
