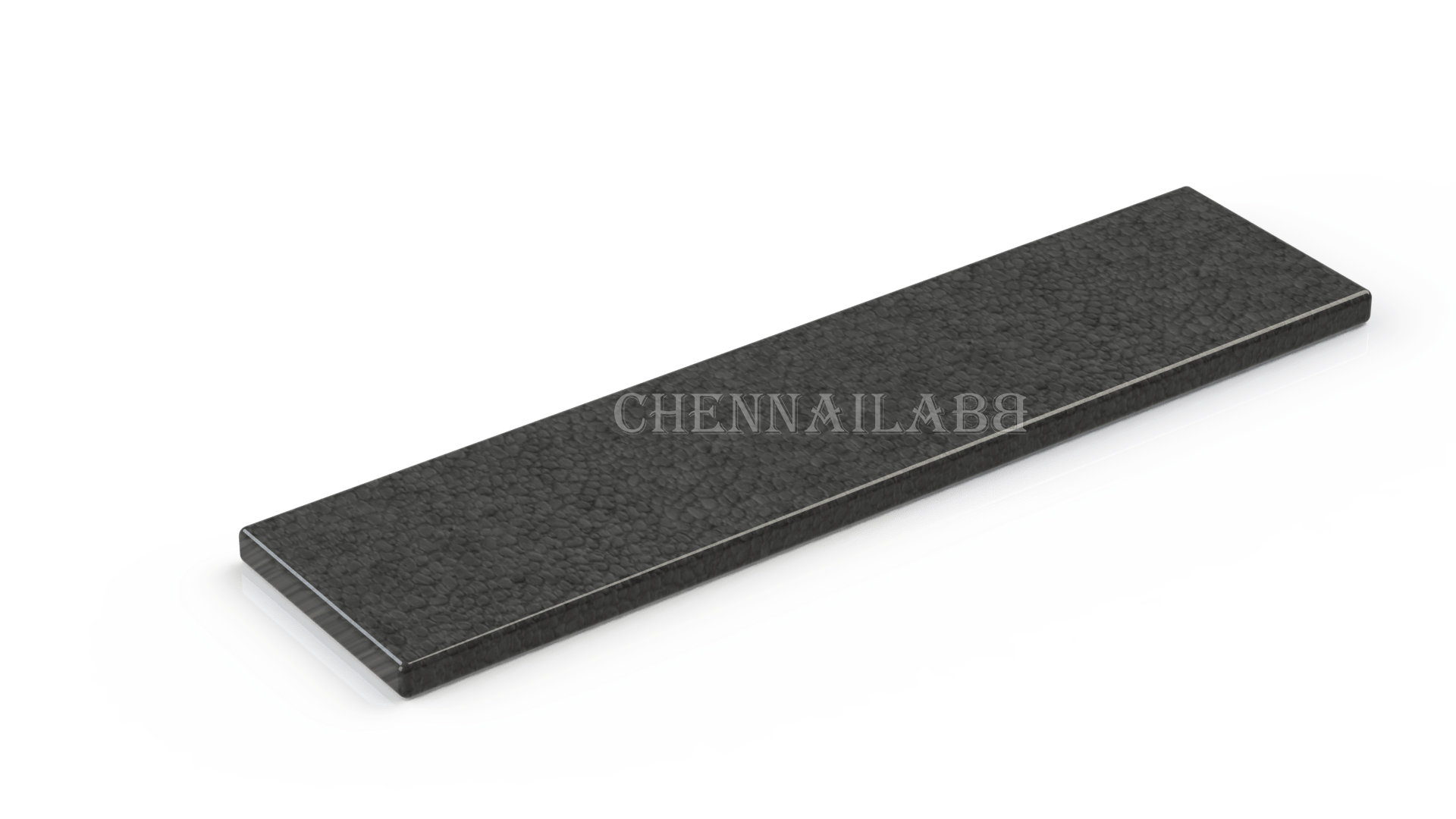

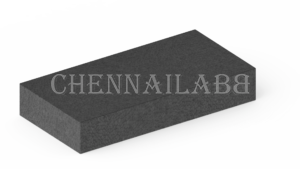

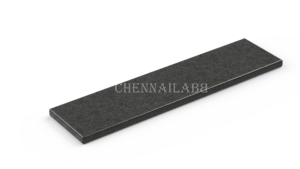

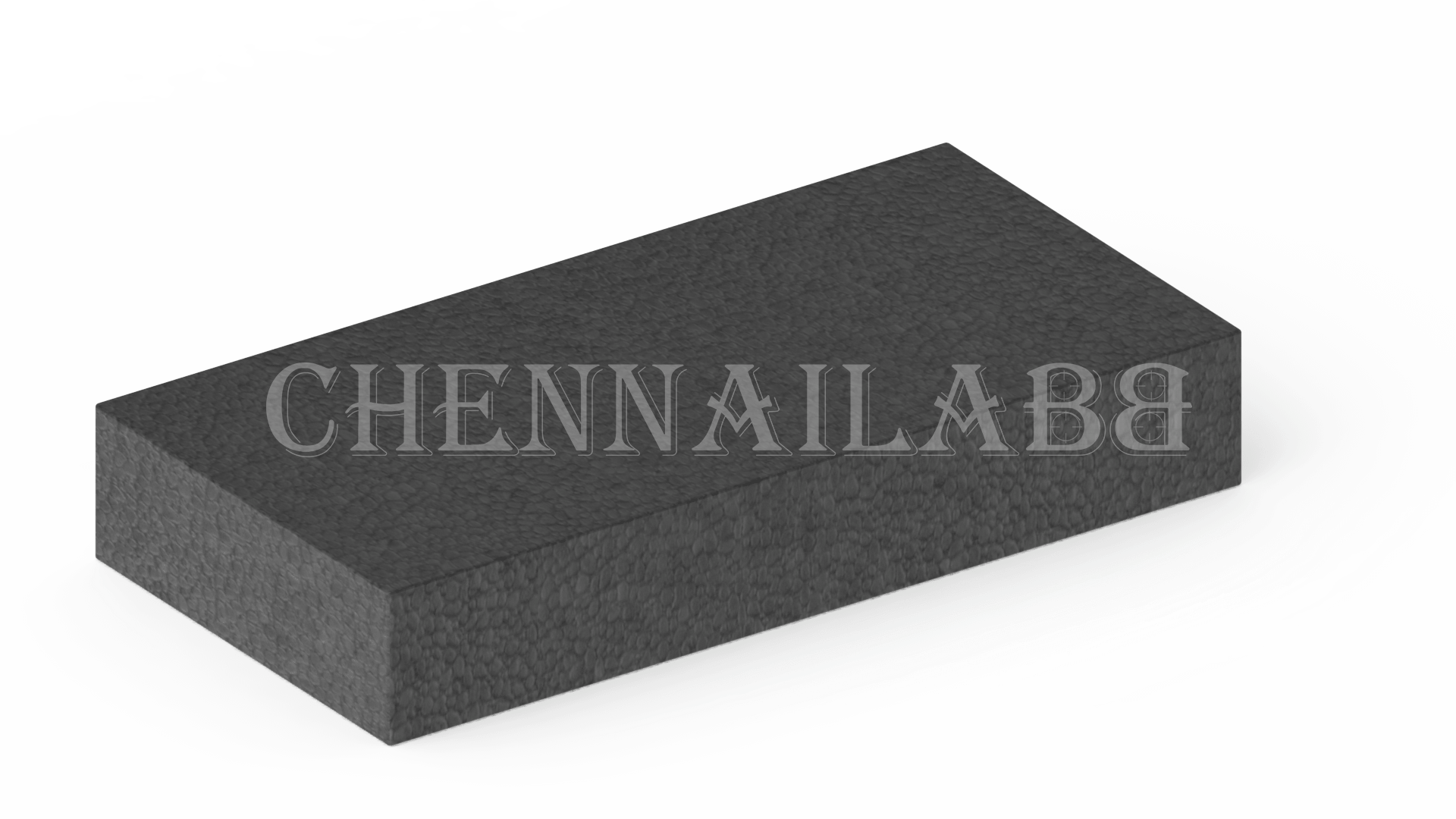

Chennailabb premium quality high performance Expanded Polypropylene RF Flat Sheet Absorbers are made of High density carbon impregnated polypropylene material. Chennailabb-PP-FLT series microwave flat absorbers are used on Doors, Anechoic chamber corners, RF shielded cabinets.

RF Flat Foam Absorber features:

• Frequency range 1GHz to 40GHz
• Typical reflectivity as high as -39dB
• Power handling capacity 4.8kW/m2, 1353 V/m CW Radiated field strength
• Fire Retardant per NRL-8093 1,2,3, UL 94:2013, HBF and DIN 4102 and Class B2
• Continuous working temperature up-to 120°C
• Clean Room suitable per ISO 14644 Class5
• Water Resistant per GB/T 4208-2017
• RoHS and REACH Compliant
• Zero Carbon dust

Part number reference:

Chennailabb-PP-FLT-40, Chennailabb-PP-FLT-100
